360° View
Drag to rotate

Floorplan Layout

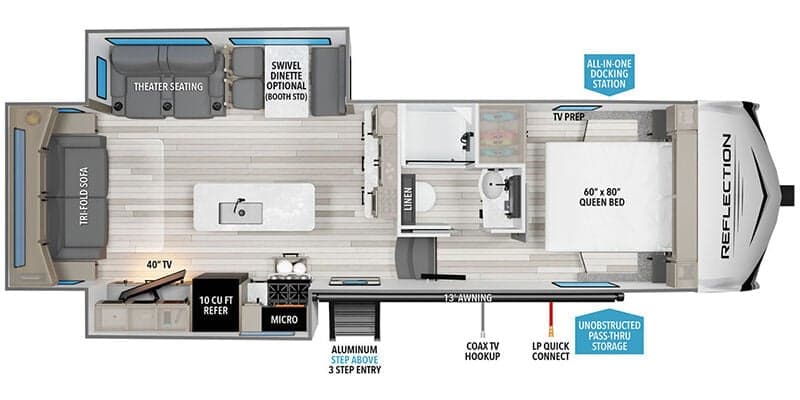

Detailed floor plan showing the complete layout and dimensions
2025 Grand Design Reflection 100 Series 28RL floorplan
Floorplan
Complete Specifications

Complete Fifth Wheel Specifications

2025 Grand Design Reflection 100 Series Overview

2025 Grand Design Reflection 100 Series 28RL Fifth Wheel highlights: • Front Private Suite • Mid Bath • Mid Kitchen • Kitchen Island • Rear Living Meet the 2025 Grand Design Reflection 100 Series 28RL, a fifth wheel that proves you can have luxury, comfort, and towability all in one package. Designed for half-ton trucks and full-time fun, this mid-size Reflection packs a big punch with a rear-living floorplan that feels anything but small. Step inside and you’re greeted by an inviting living area that says, “Go ahead, stay awhile.” The dual recliners and tri-fold sofa surround a large entertainment center with an electric fireplace, perfect for those evenings when you want the glow of a campfire without the smoke in your eyes. The kitchen is built for real meals, not just campground snacks, featuring solid-surface countertops, a deep stainless sink, a residential microwave, and a 10-cu-ft refrigerator that can hold enough groceries for a long weekend. Up front, the private master suite delivers a true escape. You’ll find a queen bed, generous closet storage, and a full bathroom with a roomy shower that even tall folks will appreciate (yes, we checked). Add in the superior insulation, the aerodynamic front cap, and Grand Design’s legendary quality, and you’ve got a fifth wheel that’s ready for every season and every adventure. From the first step to the last mile, the Reflection 100 28RL is built to make every trip feel like first-class travel, just with better scenery. Available now at Clear Creek RVs in Abilene, Texas — your West Texas Grand Design Headquarters. Disclaimer: Features, options, and pricing are subject to change without notice. Images may show optional equipment. See dealer for details. Pricing and availability subject to change. While every effort is made to ensure accurate information, Clear Creek RVs is not responsible for errors in options or pricing. The marketing team makes mistakes; confirm all information with your knowledgeable Sales Associate at Clear Creek RVs. All units are subject to prior sale.

Premium Features & Highlights

Spacious 31 ft length
Comfortable sleeping for 5
15,000 BTU air conditioning
Tankless water heater for instant hot water
Two slide-outs for expanded living space
Private bedroom for added comfort

Overview

Vehicle Identification & Details

8 specifications available

Category
Fifth Wheel
Condition
new
Floorplan
28RL
Make
Grand Design
Model
Reflection 100 Series
Stock Number
3041
VIN
573FR3223S3353553
Year
2025

Size & Weight

Dimensions, Weight, Construction & Exterior

16 specifications available

Dry Weight
8,400 lbs
GVWR
10,995 lbs
Length
31 ft
Exterior Height
12.25 ft
Width
8 ft
Awning Length Ft
13 ft
Awnings Count
1
Body Material
Aluminum Cage
Construction Type
Aluminum Cage
Entry Door
30" Radius Entry Door
Entry Steps
Aluminum Solid Step 3 Step Entry
Exterior Speakers
Yes

Sleeping & Layout

Beds, Layout, Living & Comfort

19 specifications available

Available Beds
60 x 80 Queen Bed, Tri Fold Sofa
Bedroom Count
1
Bunk Beds Count
0
Convertible Beds Count
1
King Beds Count
0
Primary Bedroom Location
Front
Private Bedroom
Yes
Queen Beds Count
1
Sleeps
5
Accent Lighting
LED
Floor Plan
28RL
Has Primary Bedroom Closet
Yes

Kitchen & Dining

Cooking, Dining & Appliances

8 specifications available

Dinette
Yes
Dining Seating
Swivel Dinette Optional (Booth Standard)
Microwave
Yes
Kitchen Island
Yes
Kitchen Location
Center
Oven
Yes
Refrigerator Size
10 cu. ft.
Refrigerator Type
10 cu. ft.

Bathroom & Facilities

Comfort & Privacy

6 specifications available

Bathroom Location
Center
Bathroom Type
Full
Bathrooms Count
1
Has Bathroom Vent
Yes
Has Medicine Cabinet
Yes
Shower Type
30 x 36"

Water Systems

Tanks & Plumbing

5 specifications available

Black Water Capacity
39 gal
Fresh Water Capacity
55 gal
Gray Water Capacity
78
Has Tankless Water Heater
Yes
Water Heater Type
Tankless

Power & Electrical

Electrical, Entertainment & Safety

4 specifications available

Solar Ready
Yes
Solar Equipped
Yes
Has Mobile App
Yes
Backup Camera Prewiring
Yes

Climate Control

Heating & Cooling

4 specifications available

Ac Btu
15,000 BTU
Air Conditioning
15,000 BTU
Heater Btu
30,000 BTU
Heater Type
Furnace

Factory Options & Packages

REFLECTION 100-SERIES PEACE OF MIND PACKAGE
REFLECTION 100 SERIES ULTIMATE POWER PACKAGE
REFLECTION 100 SERIES ARCTIC 4 SEASONS PROTECTION PACKAGE
REFLECTION 100 SERIES SOLAR PACKAGE
GOODYEAR TIRES
ABS AXLE ASSEMBLY w/ SWAY CONTROL
SAFERIDE RV ROADSIDE ASSISTANCE
SWIVEL DINETTE W/2 CHAIRS & STORAGE OTTOMAN
2ND A/C, 13.5K BTU DUCTED
RVIA SEAL

* Vehicle specifications listed to the best of our knowledge. All specifications, features, and information are provided by the manufacturer. Clear Creek RVs is not responsible for manufacturer defects, specification changes, or recalls. Buyers should verify all information directly with Clear Creek RVs.

Calculate Your RV Payment

Get your personalized RV payment options in 3 easy steps

PreferencesDetailsContactPayment

How much would you like to put down?

Choose your preferred down payment amount

Built to Last

Superior construction for years of adventures
Frame & Structure

Lightweight Construction

Weighing in at a dry weight of 8,400 lbs and a GVWR of 10,995 lbs, this RV is designed for easy towing and maneuverability.

Electrical

15,000 BTU Air Conditioning

Stay cool during your travels with an efficient 15,000 BTU air conditioning system for optimal comfort.

HVAC

30,000 BTU Furnace

Equipped with a powerful 30,000 BTU furnace for reliable heating during colder months.

Plumbing

39-Gallon Black Water Capacity

Features a 39-gallon black water tank to accommodate your waste needs during extended trips.

Chassis & Towing

1348 lbs Hitch Weight

Designed with a hitch weight of 1,348 lbs, this RV offers excellent towing stability and safety.
