Floorplan Layout

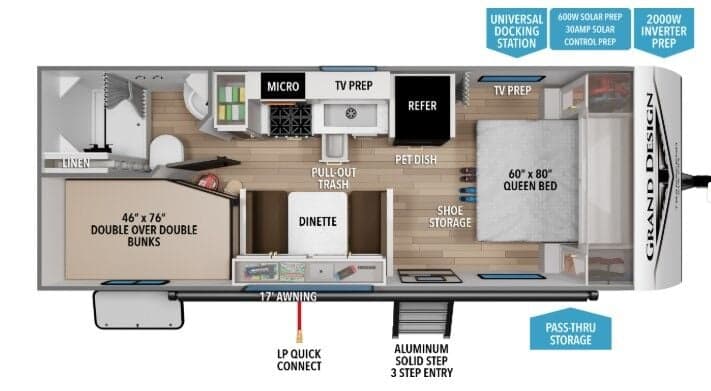

Detailed floor plan showing the complete layout and dimensions
2026 Grand Design Transcend 19BHX floorplan
Floorplan
Complete Specifications

Complete Travel Trailer Specifications

2026 Grand Design Transcend Overview

2026 Grand Design Transcend Xplor 19BHX highlights: • Front Queen Bedroom • Mid Kitchen • Dinette • Rear Double Over Double Bunks • Rear Bath The 2026 Grand Design Transcend Xplor 19BHX is a compact bunkhouse travel trailer that proves you don’t have to go big to camp comfortably. This floorplan is designed for families or couples who want something easy to tow, easy to use, and built with the quality Grand Design is known for. As you step inside, you’ll immediately notice how open and functional the layout feels for a trailer of this size. The front living and dining area gives you a comfortable space to relax, enjoy meals, or wind down after a day outside. Large windows let in plenty of natural light, making the interior feel bright and welcoming rather than cramped. Moving into the kitchen, everything is right where you need it. There’s a refrigerator, cooktop, microwave, and solid counter space to make meal prep simple, whether you’re fixing breakfast before a day of adventures or dinner back at camp. Storage is thoughtfully placed throughout, so food, cookware, and camping essentials all have a place. Toward the rear, the dedicated bunk beds are perfect for kids or guests, giving everyone their own sleeping space without needing to convert seating every night. The primary sleeping area is comfortable and efficient, offering a great place to recharge after a long day on the road or at the campsite. The bathroom is fully equipped with a shower, toilet, and sink, so you’re not sacrificing convenience just because you chose a smaller trailer. It’s a practical setup that works well for weekend trips or longer stays. Outside, the Transcend Xplor 19BHX continues to shine with durable construction and thoughtful features designed for real-world camping. This trailer is lightweight and easy to tow, making it a great option for both new RVers and experienced campers looking for something simple and dependable. If you’re looking for a well-built, family-friendly bunkhouse that’s easy to manage and ready for adventure, the 2026 Grand Design Transcend Xplor 19BHX is a great fit. Disclaimer: Features, options, specifications, availability, and pricing are subject to change without notice. Please confirm all details with a Clear Creek RVs sales professional prior to purchase. Descriptions are intended to be correct, but occasionally errors are made. Please excuse unintentional errors. Photos and information may be provided by the factory or third-party vendors. Confirm photo details with your sales associate at Clear Creek RVs in Abilene, Texas.

Premium Features & Highlights

Spacious layout with private bedroom
Comfortable sleeping capacity for 7
Ducted air conditioning for optimal climate control
Well-equipped kitchen with oven
Robust 35,000 BTU heating system
Lightweight design for easy towing

Overview

Vehicle Identification & Details

8 specifications available

Category
Travel Trailer
Condition
new
Floorplan
19BHX
Make
Grand Design
Model
Transcend
Stock Number
3268
VIN
573TT2621T8843633
Year
2026

Size & Weight

Dimensions, Weight, Construction & Exterior

7 specifications available

Dry Weight
4,942 lbs
GVWR
6,995 lbs
Length
26.3 ft
Exterior Height
11 ft
Width
8 ft
Awnings Count
0
Slides
0

Sleeping & Layout

Beds, Layout, Living & Comfort

6 specifications available

Bedroom Count
1
Bunk Beds Count
2
King Beds Count
0
Private Bedroom
Yes
Queen Beds Count
1
Sleeps
7

Kitchen & Dining

Cooking, Dining & Appliances

2 specifications available

Oven
Yes
Refrigerator Type
12V

Bathroom & Facilities

Comfort & Privacy

2 specifications available

Bathrooms Count
1
Shower Type
Standard

Water Systems

Tanks & Plumbing

3 specifications available

Black Water Capacity
39 gal
Fresh Water Capacity
56 gal
Gray Water Capacity
78

Power & Electrical

Electrical, Entertainment & Safety

0 specifications available

No specifications available for this category

Climate Control

Heating & Cooling

3 specifications available

Ac Btu
15,000 BTU
Air Conditioning
Ducted
Heater Btu
35,000 BTU

Factory Options & Packages

TRANSCEND XPLOR SIGNATURE LIVING PACKAGE
TRANSCEND XPLOR PREMIUM KITCHEN PACKAGE
TRANSCEND XPLOR CRAFT AND COMFORT PACKAGE
TRANSCEND XPLOR SOLAR SCALABILITY PACKAGE
TRANSCEND XPLOR CONNECTIVITY AND ENTERTAINMENT PACKAGE
TRANSCEND XPLOR COMPLETE CLIMATE CONTROL PACKAGE
WINTERIZATION
SafeRide RV Roadside Assistance
RVIA SEAL

* Vehicle specifications listed to the best of our knowledge. All specifications, features, and information are provided by the manufacturer. Clear Creek RVs is not responsible for manufacturer defects, specification changes, or recalls. Buyers should verify all information directly with Clear Creek RVs.

Calculate Your RV Payment

Get your personalized RV payment options in 3 easy steps

PreferencesDetailsContactPayment

How much would you like to put down?

Choose your preferred down payment amount

* Payment estimates are for informational purposes only and do not constitute a binding offer. Actual payments, rates, and terms are determined by Clear Creek RVs and their lending partners based on creditworthiness and other factors. Contact Clear Creek RVs for official quotes.

Built to Last

Superior construction for years of adventures
Frame & Structure

Lightweight Construction

Dry weight of 4,942 lbs and GVWR of 6,995 lbs for easy towing

Wall System

Durable Wall Construction

Robust materials ensure long-lasting performance and comfort

Electrical

15,000 BTU Air Conditioning

Ducted air conditioning provides efficient cooling throughout the trailer

HVAC

35,000 BTU Furnace

Powerful heating system keeps you warm during chilly nights

Plumbing

56-Gallon Fresh Water Tank

Ample fresh water capacity for extended trips without the need for frequent refills

Quality & Safety

Stable Towing Experience

Hitch weight of just 782 lbs for secure and stable towing capabilities
