2027 Grand Design Imagine AIM 16MLA

2027 Grand Design 2027 Grand Design Imagine AIM - image 1
1 / 1
ON ORDER
Expected: Jun 29, 2026

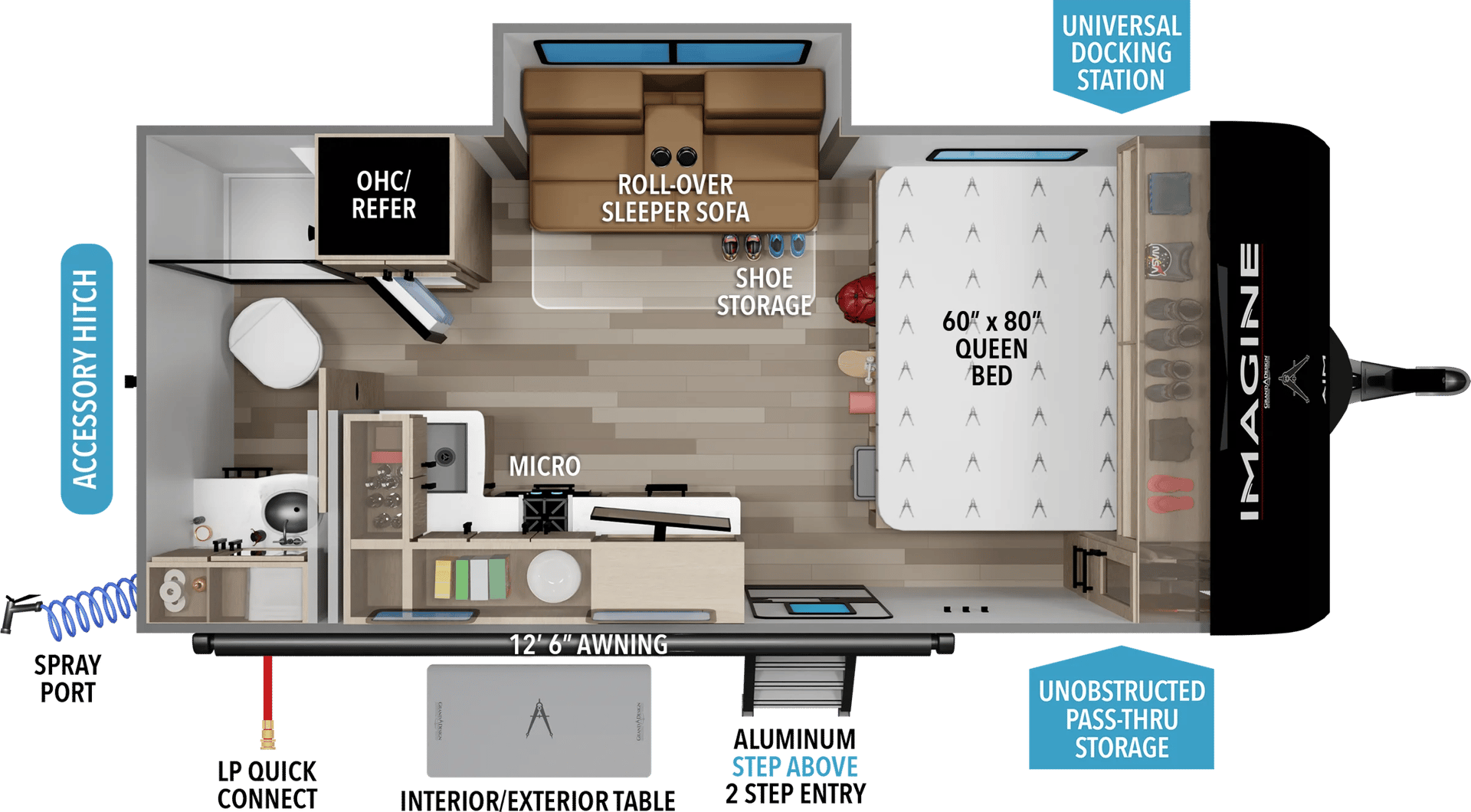

Floorplan Layout

Detailed floor plan showing the complete layout and dimensions
2027 Grand Design Imagine AIM 16MLA floorplan
Floorplan

Complete Travel Trailer Specifications

Select a category to view specs

Overview

Vehicle Identification & Details

8 specifications available

Category
Travel Trailer
Condition
new
Floorplan
16MLA
Make
Grand Design
Model
Imagine AIM
Stock Number
3438
VIN
573TE2017V3447118
Year
2027

Size & Weight

Dimensions, Weight, Construction & Exterior

13 specifications available

Dry Weight
3,812 lbs
GVWR
4,795 lbs
Length
19.67 ft
Exterior Height
10.17 ft
Width
8 ft
Awning Length Ft
12.6 ft
Awnings Count
1
Entry Steps
Aluminum Step Above 2 Step Entry
Exterior Speakers
Yes
Grab Handle
Yes
Has Power Awning
Yes
Has Power Slideouts
Yes

Sleeping & Layout

Beds, Layout, Living & Comfort

7 specifications available

Available Beds
Front Queen Bed, Roll-Over Sleeper Sofa
Bunk Beds Count
0
Convertible Beds Count
0
Primary Bedroom Location
Front
Queen Beds Count
1
Sleeps
3
Living Area Location
Middle

Kitchen & Dining

Cooking, Dining & Appliances

3 specifications available

Microwave
Yes
Kitchen Location
Middle
Kitchen Table Config
Interior/Exterior Folding Table

Bathroom & Facilities

Comfort & Privacy

5 specifications available

Bathroom Location
Rear
Bathroom Type
Full
Bathrooms Count
1
Has Bathroom Vent
Yes
Shower Type
Standard

Water Systems

Tanks & Plumbing

3 specifications available

Black Water Capacity
37 gal
Fresh Water Capacity
37 gal
Gray Water Capacity
45

Power & Electrical

Electrical, Entertainment & Safety

3 specifications available

Televisions Count
1
Usb Charging
Yes
Backup Camera Prewiring
Yes

Factory Options & Packages

IMAGINE AIM PEAC OF MIND PACKAGE
IMAGINE AIM ULTIMATE POWER PACKAGE
IMAGINE AIM FOUR SEASON PROTECTION PACKAGE
IMAGINE AIM SOLAR PACKAGE
SAFERIDE RV ROADSIDE ASSISTANCE
RVIA SEAL

* Vehicle specifications listed to the best of our knowledge. All specifications, features, and information are provided by the manufacturer. Clear Creek RVs is not responsible for manufacturer defects, specification changes, or recalls. Buyers should verify all information directly with Clear Creek RVs.
