2027 Grand Design Imagine AIM 20BHA

2027 Grand Design 2027 Grand Design Imagine AIM - image 1
1 / 1
ON ORDER
Expected: Aug 31, 2026

Layout & Media

Explore the floorplan, 3D tour

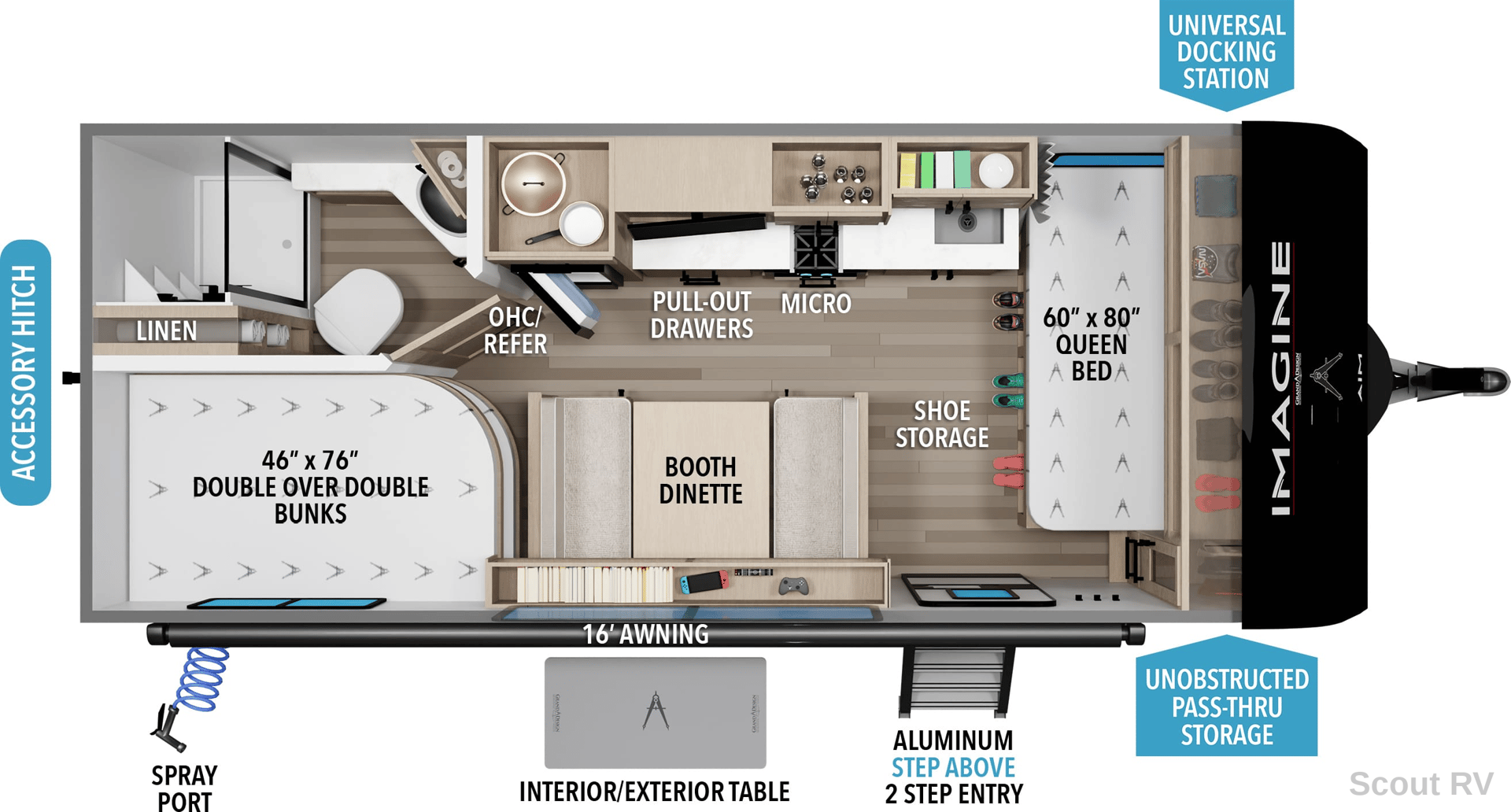

2027 Grand Design Imagine AIM 20BHA floorplan

Complete Travel Trailer Specifications

Select a category to view specs

Overview

Vehicle Identification & Details

8 specifications available

Category
Travel Trailer
Condition
new
Floorplan
20BHA
Make
Grand Design
Model
Imagine AIM
Stock Number
3509
VIN
573TE2423V3447703
Year
2027

Size & Weight

Dimensions, Weight, Construction & Exterior

13 specifications available

Dry Weight
4,538 lbs
GVWR
6,395 lbs
Length
23.83 ft
Exterior Height
10.42 ft
Width
8 ft
Awning Length Ft
16 ft
Awnings Count
1
Entry Door
1
Entry Steps
Aluminum Step Above 2 Step Entry
Exterior Speakers
Yes
Grab Handle
Yes
Has Power Awning
Yes

Sleeping & Layout

Beds, Layout, Living & Comfort

11 specifications available

Available Beds
Front Queen Bed, Booth Dinette Convertible, Rear Double over Double Bunks
Bedroom Count
1
Bunk Beds Count
2
Bunkhouse
Yes
King Beds Count
0
Primary Bedroom Location
Front
Murphy Beds Count
0
Queen Beds Count
1
Sleeps
5
Living Area Location
Mid
U Shaped Dinette
false

Kitchen & Dining

Cooking, Dining & Appliances

4 specifications available

Dinette
Yes
Microwave
Yes
Kitchen Location
Front
Kitchen Table Config
Booth Dinette

Bathroom & Facilities

Comfort & Privacy

4 specifications available

Bathroom Location
Rear
Bathroom Type
Full
Bathrooms Count
1
Shower Type
Standard

Water Systems

Tanks & Plumbing

3 specifications available

Black Water Capacity
37 gal
Fresh Water Capacity
37 gal
Gray Water Capacity
45

Climate Control

Heating & Cooling

3 specifications available

Ac Btu
13,500 BTU
Air Conditioning
13,500 BTU
Heater Btu
20,000 BTU

Standard Features & Equipment

Queen Murphy Bed with Storage Drawers (15RBA)
Master Suite with Queen Bed (16MLA, 19MLA, 20BHA)

Factory Options & Packages

IMAGINE AIM PEAC OF MIND PACKAGE
IMAGINE AIM ULTIMATE POWER PACKAGE
IMAGINE AIM FOUR SEASON PROTECTION PACKAGE
IMAGINE AIM SOLAR PACKAGE
SAFERIDE RV ROADSIDE ASSISTANCE
BOOTH DINETTE
RVIA SEAL

* Vehicle specifications listed to the best of our knowledge. All specifications, features, and information are provided by the manufacturer. Clear Creek RVs is not responsible for manufacturer defects, specification changes, or recalls. Buyers should verify all information directly with Clear Creek RVs.
